Doctor Blades

Phosphorus Brozne

HB Engineering is a leading manufacturer of high-quality phosphorus bronze doctor blades, renowned for their precision and durability. HB Engineering’s doctor blades ensure precise ink transfer and consistent print quality. The advanced manufacturing processes and stringent quality control at HB Engineering guarantee blades that offer long-lasting service and minimal maintenance. Ideal for use in offset printing, flexographic printing, and other industrial applications, these doctor blades help enhance operational efficiency and reduce downtime. With a commitment to innovation and customer satisfaction.
Roll Position Degree Recommended Blade Pressure
M.g. Cylinders 30 0 Min.270.0/1.50 & Max.540./3.00
Dryers 30 0 Min.180.0 & Max.225.0
Calenders 30 0 Min.110.0 & Max.180.0
Yankee 30 0 Min.180.0 & Max.400.0
Pope Reel 30 0 Min.160.0/1/12 & Max.300.0/2.00

Epoxy Doctor Blade

HB Engineering excels in producing high-quality epoxy doctor blades, engineered for superior performance in printing and coating applications. Made from advanced epoxy resin, these blades offer excellent durability, chemical resistance, and precise ink transfer. Their robust design ensures long-lasting use, reducing maintenance and downtime. Ideal for offset and flexographic printing, HB Engineering’s epoxy doctor blades enhance print quality and operational efficiency. With a commitment to innovation and rigorous quality control, HB Engineering delivers reliable, high-performance products tailored to meet the needs of diverse industrial sectors.
Roll Position Degree Recommended Blade Pressure
Press Roll 25 0 Min.150.0 & Max.260.0
Dryers 30 0 Min.140.0 & Max.200.0
Calenders 25 0 Min.135.0 & Max.200.0
M.G. 25 0 Min.80.0 & Max.160.0
Yankee 25 0 Min.80.0 & Max.170.0
Reel 25 0 Min.40.0 & Max.200.0
Brest Roll 25 0 Min.80.0 & Max.120.0
Wire Roll 25 0 Min.80.0 & Max.400.0
Drying & Cool 25 0 Min.90.0 & Max.120.0

Bakelite Fiber & Polypick Doctor Blade

HB Engineering is a premier manufacturer of Bakelite fiber and Polypick doctor blades, known for their exceptional durability and performance. Bakelite fiber doctor blades are crafted from a robust composite material, offering excellent resistance to wear and chemicals, making them ideal for demanding printing environments. Polypick doctor blades, made from high-quality polymer materials, provide superior flexibility and precise ink application. Both types of blades are designed to enhance print quality and operational efficiency, reducing maintenance needs and extending service life. With a focus on innovation and quality, HB Engineering ensures reliable, high-performance solutions for various industrial applications.
Roll Position Degree Recommended Blade Pressure
Breast Roll 25 0 Min.100.0 & Max.135.0
Wire Roll 25 0 Min.80.0 & Max.100.0
Felt Roll 25 0 Min.80.0 & Max.100.0
Cooling Cyl 25 0 Min.80.0 & Max.100.0
Pope Reel 25 0 Min.80.0 & Max.100.0

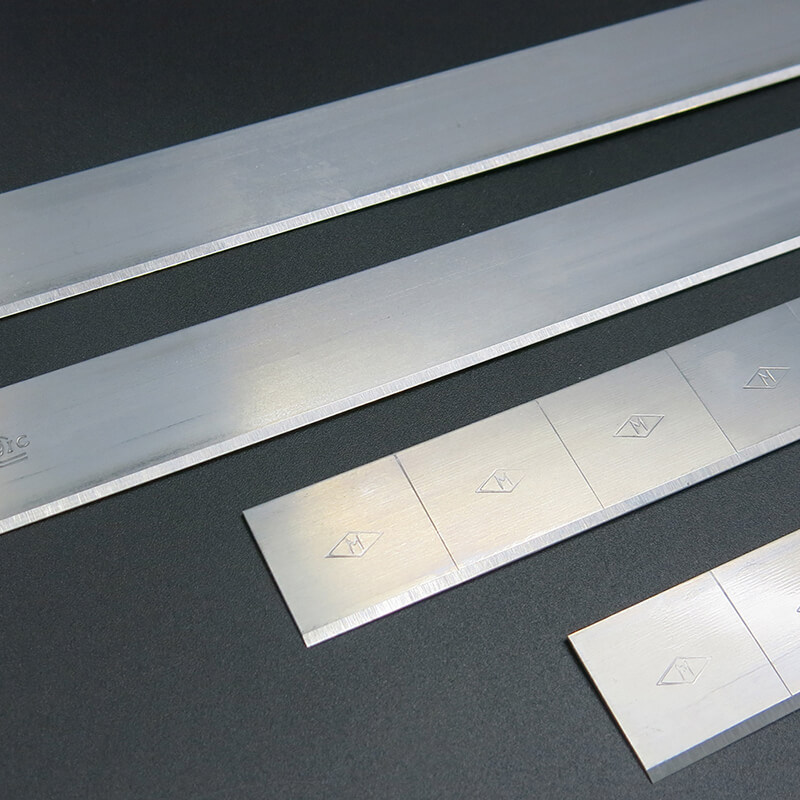

Stainless steel Doctor Blade

HB Engineering specializes in manufacturing premium stainless steel doctor blades, renowned for their exceptional strength and precision. Crafted from high-grade stainless steel, these doctor blades offer superior durability, corrosion resistance, and excellent performance in diverse printing and coating applications. Designed for optimal ink transfer and minimal maintenance, HB Engineering’s stainless steel blades ensure consistent, high-quality results. Ideal for use in offset and flexographic printing processes, these blades help enhance operational efficiency and extend equipment lifespan. With a dedication to innovation and rigorous quality control, HB Engineering delivers reliable, high-performance doctor blades tailored to meet industry demands.
Roll Position Degree Recommended Blade Pressure
Press Roll 30 0 Min.180.0 & Max.260.0
Yankee 30 0 Min.180.0 & Max.400.0

Carbon steel Doctor Blade

HB Engineering is a leading manufacturer of high-quality carbon steel doctor blades, designed for exceptional performance in various printing and coating applications. Constructed from premium carbon steel, these doctor blades provide excellent strength, durability, and resistance to wear. Ideal for offset and flexographic printing, HB Engineering’s carbon steel blades ensure precise ink transfer and consistent print quality. Their robust design reduces maintenance and enhances operational efficiency. With a commitment to innovation and stringent quality control, HB Engineering delivers reliable, high-performance carbon steel doctor blades tailored to meet the rigorous demands of industrial processes.
Roll Position Degree Recommended Blade Pressure
Dryers 30 0 Min.180.0 & Max.225.0
Yankee 30 0 Min.180.0 & Max.400.0
M.G Cylinder 30 0 Min.270.0 & Max.540.0
Calenders 25 0 Min.110.0 & Max.180.0
